A maternity centre for a rural community in southern Senegal, built around a healing garden: a sheltered courtyard where women and their families can rest, meet, learn and recover in a quiet, protected place.
We used local materials and building methods: rammed-earth walls, a raised straw roof on timber trusses, bamboo screens and coloured fabrics. The building stays cool without mechanical systems, softens the daylight and collects rainwater from its 553 m² roof.
About €194 per m² of indoor floor (≈296 m²). The other areas used below: tiled floor 504 m², roof surface 729 m², rainwater catchment 553 m² in plan. I took the quantities from the Revit model and priced them with local materials. The same earth, straw and timber that keep the building cool also keep it cheap to build.

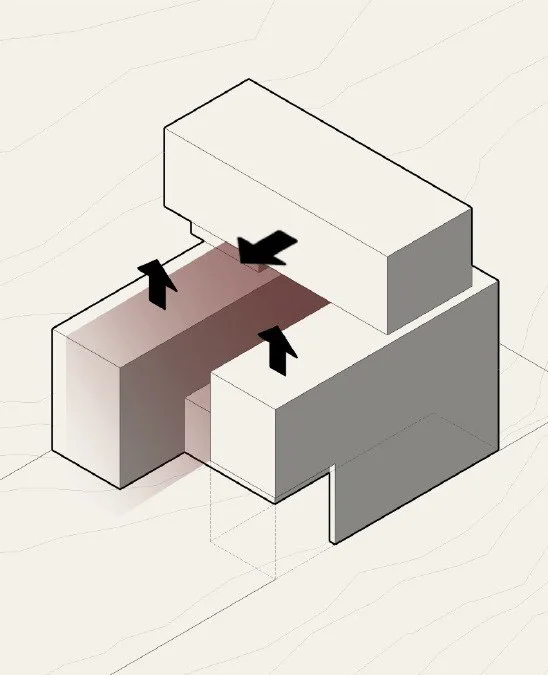

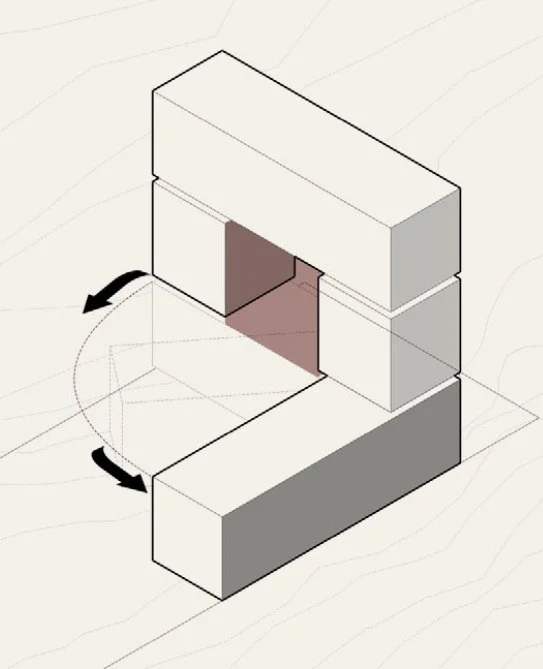

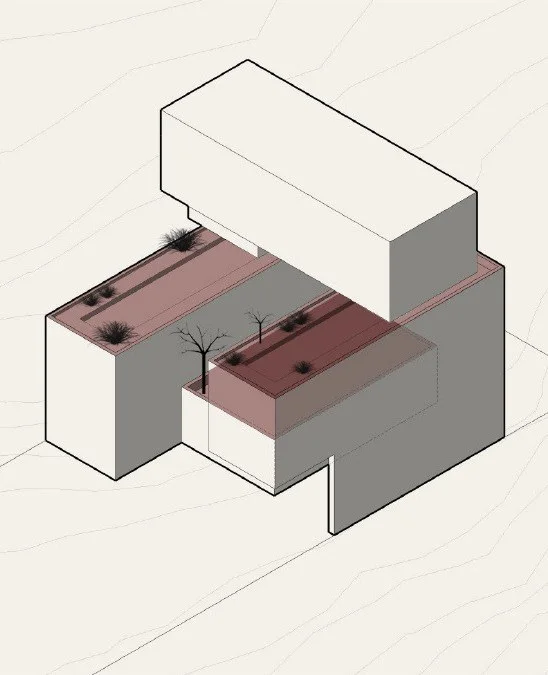

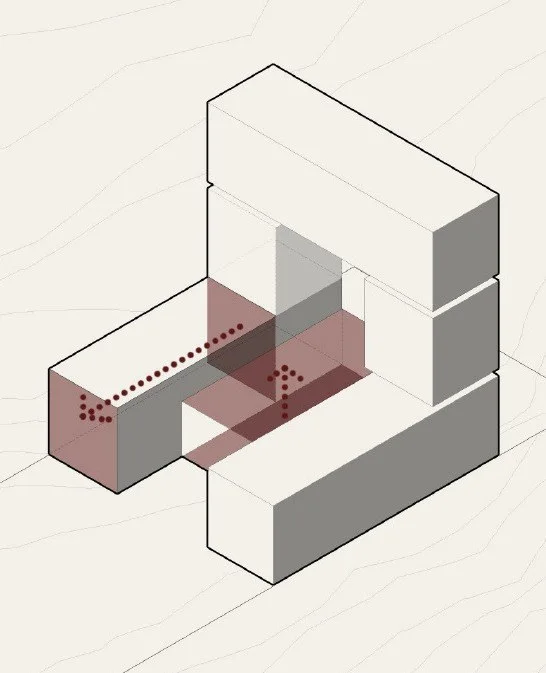

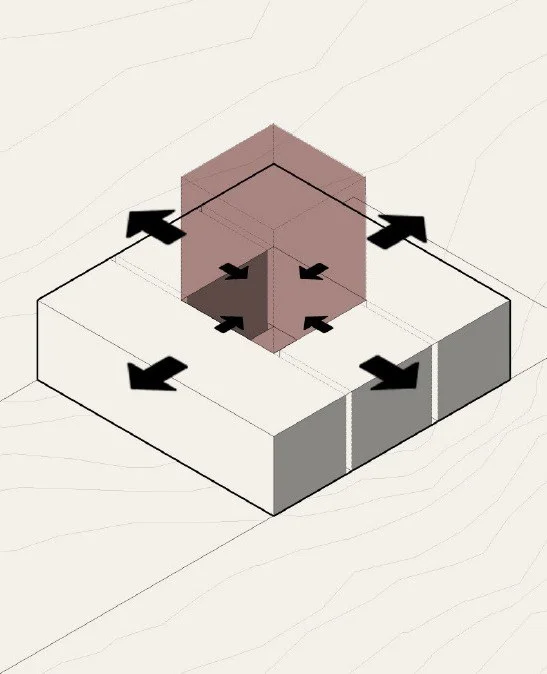

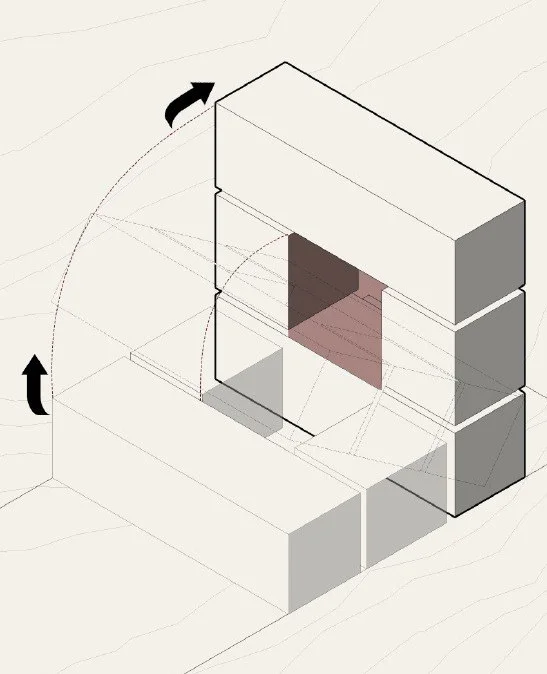

Concept diagrams 1 to 6.
Hover to focusTap to focus
Point cloud · UAV photogrammetry
56,000 points shown · 3.2 M captured
Revit BIM model, registered to the survey
703 elements
Hover to focusTap to focus
Rendered from the same viewpoints, so the client could compare them side by side.
Hover to focusTap to focus
A parametric take on Norman Foster's Droneport, a light piece of infrastructure for regions without roads. Each vault is form-found in Grasshopper with Kangaroo so that it works in pure compression, and the whole building is made of six identical brick modules.
The geometry goes from a relaxed mesh to a Rhino surface, then into Revit as a mass family, where BIM schedules count every square metre of brick, mortar, glass and concrete.
Hover a step to read itTap a step to read it
This is a live version of the Grasshopper definition: zero-length edge springs, an upward load and two catenary edge arches settle into balance, the same way they do in Kangaroo. At the design values the crown reaches 6.78 m, as in the Rhino model.
10 × 10 m module, anchored at its four feet. Drag the vault to turn it.
Hover a layer to isolate it. The shell is laid as brick, mortar, brick, mortar, brick over a grid of concrete foundation pads, so each vault stays thin and light.
The site is next to a river that has flooded in recent years, so the first job was to understand how the water level changes through the year and to find a safe place to build. Our answer was a removable base and a modular frame that can be put up and taken down as the events and the seasons change.
In summer it is a stage for concerts, a music hall and an open-air cinema. In winter it holds market stalls. All year round it works as storage and as a passage. I modelled it in Revit to count every module and the space needed to store them.
A private library under a pitched roof: walnut panelling, full-height shelving with a rolling ladder, a marble fireplace and a writing desk.
Click a layer to add it, or drag the barTap a layer to add it, or drag the bar
Farbod Saed · Architectural designer
3D Artist, MRO Architecture Office
May–Dec 2025
Construction Manager, Drafter & 3D Artist, Grid Architecture Office
2022–2023
MSc Architecture for Sustainability, Politecnico di Torino, 2023–present
BSc Architectural Engineering, Azad University, 2014–2020
